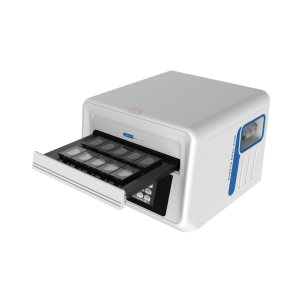

Embryo RT®TLS301 time-lapse incubator

Technical specification

Working altitude requirement: Altitude ≤2000 m

Power supply: AC220V 50Hz

Working environment temperature: +18.0℃~+30.0°C

Relative humidity in the work environment: ≤80%(no condensation)

Temperature control range: 35.0℃ ~ 40.0°C

CO2 concentration control range: 0%~15.0%

O2 concentration control range: 2.0%~17.0%

External dimension: 66.0cmx62.0cmx46.5cm (Width x Depth x Height)

Instrument weight: 90KG

Dish capacity: 10 culture dishes (10 independent cabins)

Usable gas: Tri-gas

Illumination: Red light (wavelength 635 nm)

Imaging resolution: 2448*2048 pixel

Imaging duration: Single cyclic imaging total duration ≤10 minutes
